A wireless stereo speaker I build using Up2Stream AMP board.
The case is made of PVC boards I have for modeling, the speakers salvage from my old desktop speaker. I only use a 12V/2A power supply but the volume is already high enough to use in my room.

IMG_20210210_170951
IMG_20210210_1709513648×2736 1.97 MB

Inside is quite empty, maybe I should divide the speakers in separate “room” for better sound, also drilled a hole for power supply cord at the back.

IMG_20210210_171413
IMG_20210210_1714133648×2736 1.71 MB

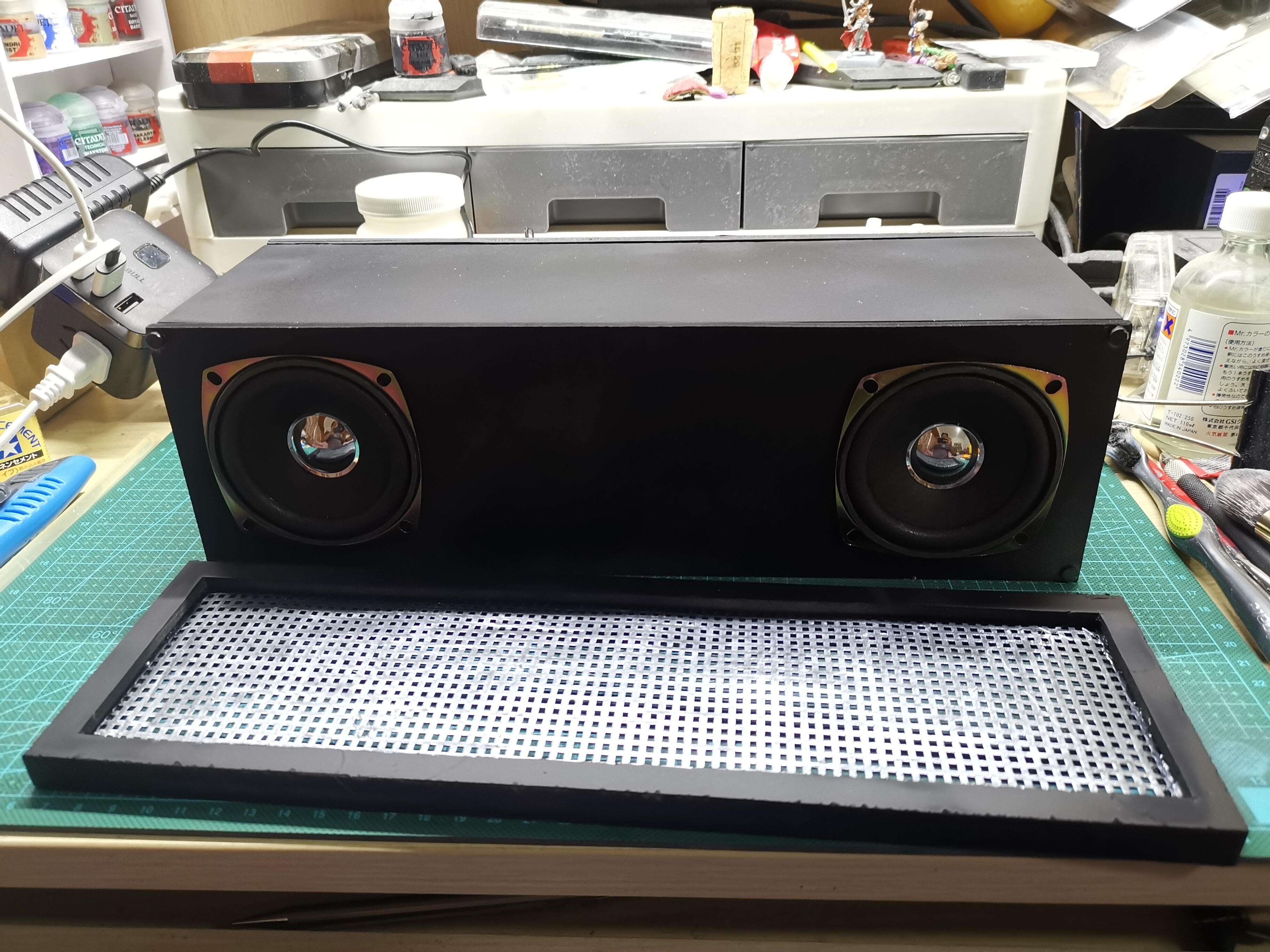

Spay paint it black and made a magnetic cover.

IMG_20210210_171518
IMG_20210210_1715183648×2736 1.95 MB

I connect it to my PC as desktop speaker when I watch videos and play games, listen to spotify when I am working on my models.
So far, it serve me very well, the sound is good. :slight_smile:
Now I am thinking to add a rotary knob for volume control, it will be more convenient then going back to the app just to change volume. :sweat_smile:

5 Likes
2

Nice sharing @Sim ! Don’t forgot to share after you add the knobs :laughing:

3

The front cover looks old, great job.

7

Sure, once I finished the upgrade, I will post it. :wink:

8

looks old…? anyways, thanks. :sweat_smile:

9

@Sim: great work !

If both speakers share the same room/space inside the housing it is essetial that they have the same polarity/“are in phase”. Otherwise the sound waves of the spaekers may vanish if they overlay.

Cheers,
Zimmer

1 Like
10

Added a volume knob and put some LED light with breathing effect :laughing:
Also seperate the speakers in different rooms as suggested by zimmer, feels like it do sounds better :+1:

1
13456×2296 1.58 MB
2
23456×2296 1.94 MB
3
33456×2296 1.99 MB

3 Likes
11

So cool @Sim !!! It seems you can have a party at home now!!!

12

You would be able to ‘see’ the sound if the light blinks following the music rythm!

1 Like
13

Very Cool @Sim Love the Magnetic Cover idea :ok_hand:

14

ABSOLUTELY NO EXPERIENCE with the linked product but my point is this functionality is cheap :slight_smile:

https://agouk.com/index.php/white-music-sound-controller-ir-remote-rgb-led-light-controller.html

15

Yes, something like that. It’s easy to get some fancy light effects.

16

Able to do LED rhythm with music sounds good.
@NWT.Stuff thanks for sharing :+1:

17

Wow . looks much fancy after upgrade ,wondering how’s the sound .
