Active speaker project using Arylic Up2Stream Plate AMP 2.1

DIY Products&Projects
1

I like to build stuff and i like to listen to music. After a few online radios based on ESP32 I wanted to do something bigger. Searching for inspiration online I found several projects for active speakers and initially I settled for Carmody’s Sprite but then I saw his Isetta project and went for that one. Here is the original project: Paul Carmody's DIY Speaker Pages - Isetta

It uses the W5-1138SMF woofer from Tang Band and two full range 3" drivers from Hi-Vi: B3N.

As I don’t have audio equipment (nor the knowledge) to measure parameters I wanted to do something that is already proven by to work. I made the enclosure a little bigger then the original project: 7 liters for the woofer and tuned it to 40Hz using WinISD

WinISD_W5-1138SMF
WinISD_W5-1138SMF1312×834 34.8 KB

. Could not find a 1.5" port so I used a 40mm OD (about 36 on the inside) diameter water pipe and I 3d printed a flange for it.
The cabinet is made from 12mm MDF. I had the panels cu to size but everything else I have done it manually: cutouts, drilling, gluing, sanding, applying filler, sanding, prime, more sanding, paint, sanding and finally some varnish. I also printed the feet.
mPXL_20230421_182809480
mPXL_20230421_1828094801344×756 246 KB

mPXL_20230421_182824902
mPXL_20230421_1828249021344×756 262 KB

mPXL_20230421_182919627
mPXL_20230421_1829196271344×756 156 KB

mPXL_20230426_183307011
mPXL_20230426_1833070111920×1080 220 KB

mPXL_20230426_190455405
mPXL_20230426_1904554051344×756 275 KB

Initially I wanted to buy a cheap 2.1 amplifier based on some class D amplifier chip like TPA3116, but also wanted Bluetooth. As a board type amp would imply a lot of work to integrate into the speaker so I started to search for a plate amplifier and I found the Arylic Up2Stream Plate AMP 2.1 to have everything I wanted and more. It was more expensive then I wanted to spend but the thing that convinced me was the fact that it has programable DSP onboard. You see, the original Isetta project had filters (crossover filter, BSC filter and a notch filter for cone breakup compensation) made of passive elements which are expensive, needed some work to put together and didn’t offer much flexibility to adjust things. I was more than happy to replace all of this hardware components with a few clicks in the ACPWorkbench tool.

Note that I am not an audiophile so I cannot measure the result but I think I am pretty close to the original project.
I used Xsim and Edge to simulate the response and apply the filters as below:

Arylic_DSP_HiVi_B3N_BSC
Arylic_DSP_HiVi_B3N_BSC1920×1080 176 KB

Baffle step compensation simulation in Edge

Arylic_DSP_HiVi_B3N
Arylic_DSP_HiVi_B3N1920×1080 228 KB

Cone breakup filter. Xsim simulation of Isetta’s filter.

A few words on the Arylic Up2Stream Plate AMP 2.1:

  • highly integrated: you only need to connect the drivers
  • DSP included
  • Bluetooth
  • Wi-Fi: many online services but also plays audio from LAN DLNA (browsing is very fast)
  • besides the app, it has a very nice web interface (this is not mentioned anywhere online)
  • voice guided prompts of the amp status

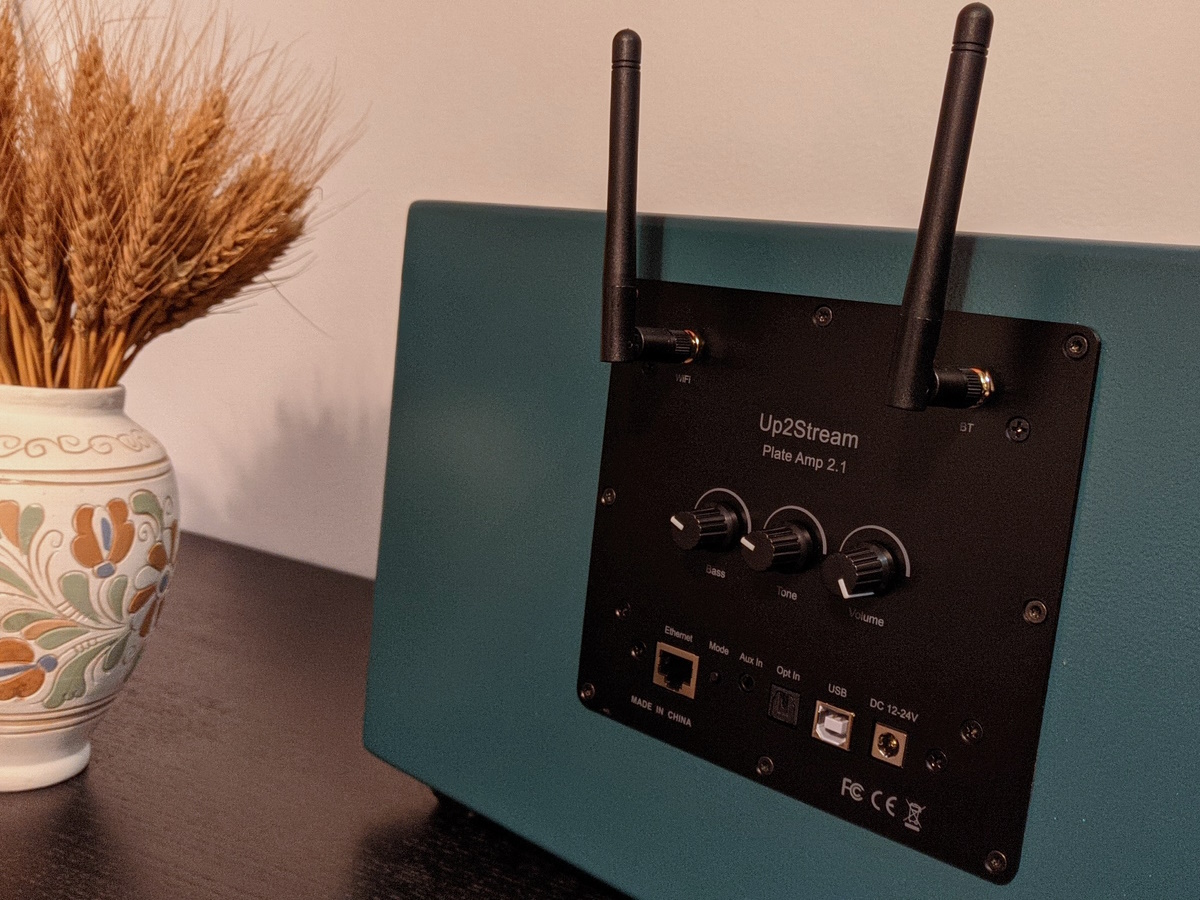

A couple of pictures of the final product:

PXL_20230430_204345265
PXL_20230430_2043452651200×900 386 KB

PXL_20230430_204120898
PXL_20230430_2041208981200×900 405 KB

I will test the amp features in the following days and maybe I will post a few impresions.

4 Likes
2

Nice build, thanks for sharing :+1:. I built a similar-sized one (~10 liters, 12/15mm multiplex) two years ago, even with the same subwoofer. However, my fullrange speakers were 4" Dayton Audio RS-100-4 and I used a passive radiator instead of a port. Since the plate amp was not available back then I used the standard amp 2.1 board. Meant, I had to create my own front and back panels. Fortunately, the plate amp makes things much easier in this regard. I also have a plate amp 2.1 laying around on the shelf but have not made up my mind on the use case and design.

Regards, Sven

1 Like
3

Hi Ethan,
I was kind of disappointed that I finished it so soon. I enjoyed working on it but the plate amp made it so simple. I bet yours took a lot more but looks really nice - has a vintage vibe.

4

Hi DaBu,
I always find the same at the completion of a build, good excuse to try another one. Yours was a nice tidy build by the way :+1:.

1 Like
